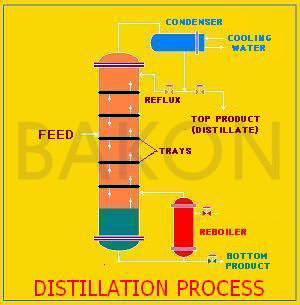

Distillation
is a
mass
transfer
operation
aimed at
seperating
a liquid
solution
into its
components.
The
liquid
solution
is
heated
to force
its
components,
which
have
different
boiling
points,
into the
gas
phase.

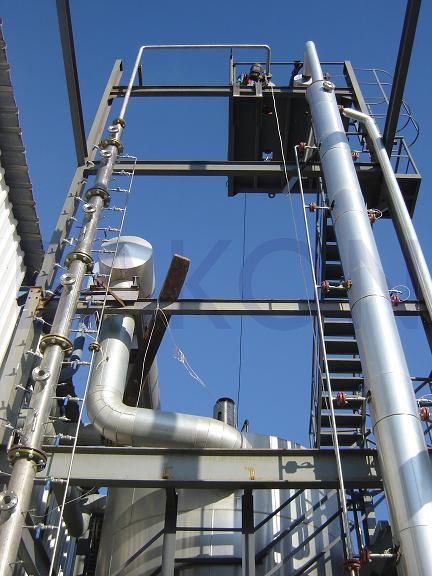

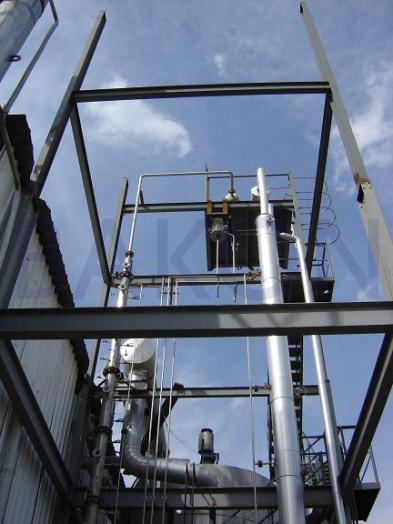

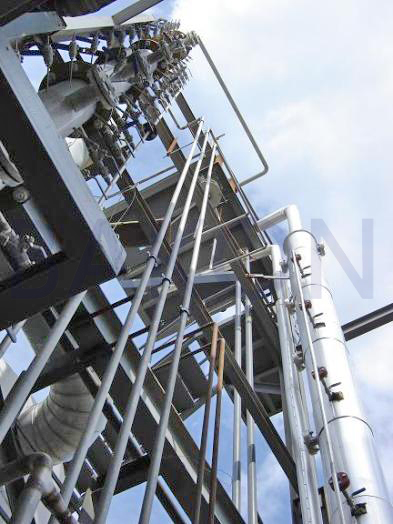

A
typical
distillation
system
contains
a
distillation
column
where
the
separation
of
liquid
components
is
carried
out, a
reboiler
to
provide
the
necessary
vaporisation
for the
distillation
process,
a
condenser
and a
reflux
drum.

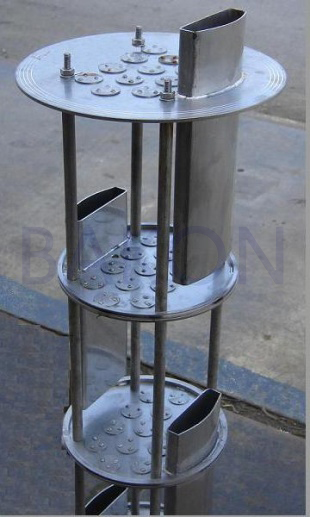

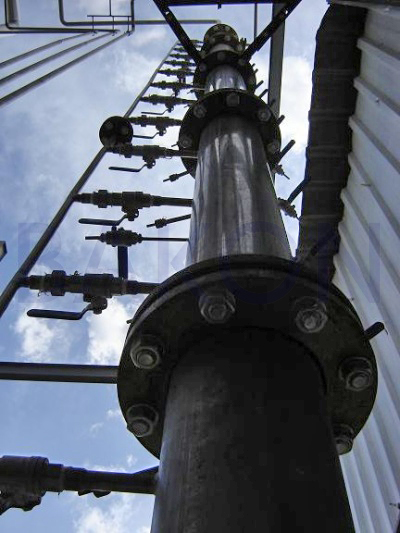

A
distillation
column
contains
a
vertical
shell
and
internals
such as
trays/plates
or
packings.
The
liquid
solution
that is
to be
processed
is known
as the
feed
and is
introduced
into the
column
on one
or more
trays.

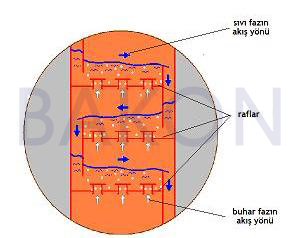

As the
liquid
flows
down, it
comes in
contact
with
rising
vapor on
the plates
where
mass
transfer
between
the
phases
takes
place in
both
directions.
The
vapor
and
liquid
contacting
on a
plate
try to
come
equilibrium.
The heat
of
condensation
given by
the
condensing
vapor is
taken up
by the
liquid
and part
of it
vaporizes.
While
this
enriches
the
liquid
in less
volatile
component
further,
the
vapor is
also
enriched
in the
more
volatile
component
further.
These
partial
vaporizations
and
partial
condensations
are
repeated
on each
plate.
As a
result
of
these,
the
liquid
solution
flowing
down
from
plate to
plate
continuously
enriches
in the
less
volatile
component.
By
providing
sufficient
number
of the
plates
(or
packing
height)
in this
region
of the
column,
the
liquid
reaching
bottom
of the
column
can be
made
almost
pure in
the less
volatile
component.
This
liquid
is
withdrawn
as
bottom
product.
The
vapor
leaving
the
column
is
directed
to a
condenser,
where it
condenses
totally
and part
of this
condensate
(liquid)
is
returned
back to
the top
of the
column
as
reflux
liquid
to
provide
the
liquid
phase
rich in
the
more
volatile
component
on the
plates
above
the feed
plate.
The
remaining
part of
the
condensate
is
withdrawn
as
top
product
or
distillate. |
